Sorry, this product is no longer available.
| Frame: | Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, one-piece Monoblock upper link, HHG internal cable routing, oversize 15mm axles |
| Fork: | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Rear Shock: | Öhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset: | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Stem: | Onoff S9 30mm 0º, Full CNC, 31.8mm barbore |
| Bars: | Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Front Brake: | Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake: | Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brake Lever: | Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust |
| Rear Mech: | Sram X0 Eagle AXS, T-Type, 12s |
| Shifters: | Sram Eagle AXS Pod MMX, 12s |
| Speed: | 12 |
| Rims: | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
| Front Hub: | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub: | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Spokes: | Mavic straight-pull double butted, contactless lacing |
| Front Tyre: | Maxxis Assegai 29x2.6WT, tubeless ready, 3C MAXX GRIP compound, DD protection, 60x2TPI, folding bead |
| Rear Tyre: | Maxxis Minion DHR II 29x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Seat Post: | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Saddle: | Ergon SM-10 |
| Chainset: | E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm . Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
| Chain: | Sram GX Eagle T-Type, 12s, Powerlock |
| Cassette: | Sram XS-1295, 10-52T, T-Type, 12s |
What are the delivery costs?
We offer Free UK Mainland Delivery on all orders over £20. Products shipped to outlying UK regions are excluded from free shipping.
Standard delivery is normally 2 - 5 working days.
Please view our delivery page for full information on UK and international delivery costs.

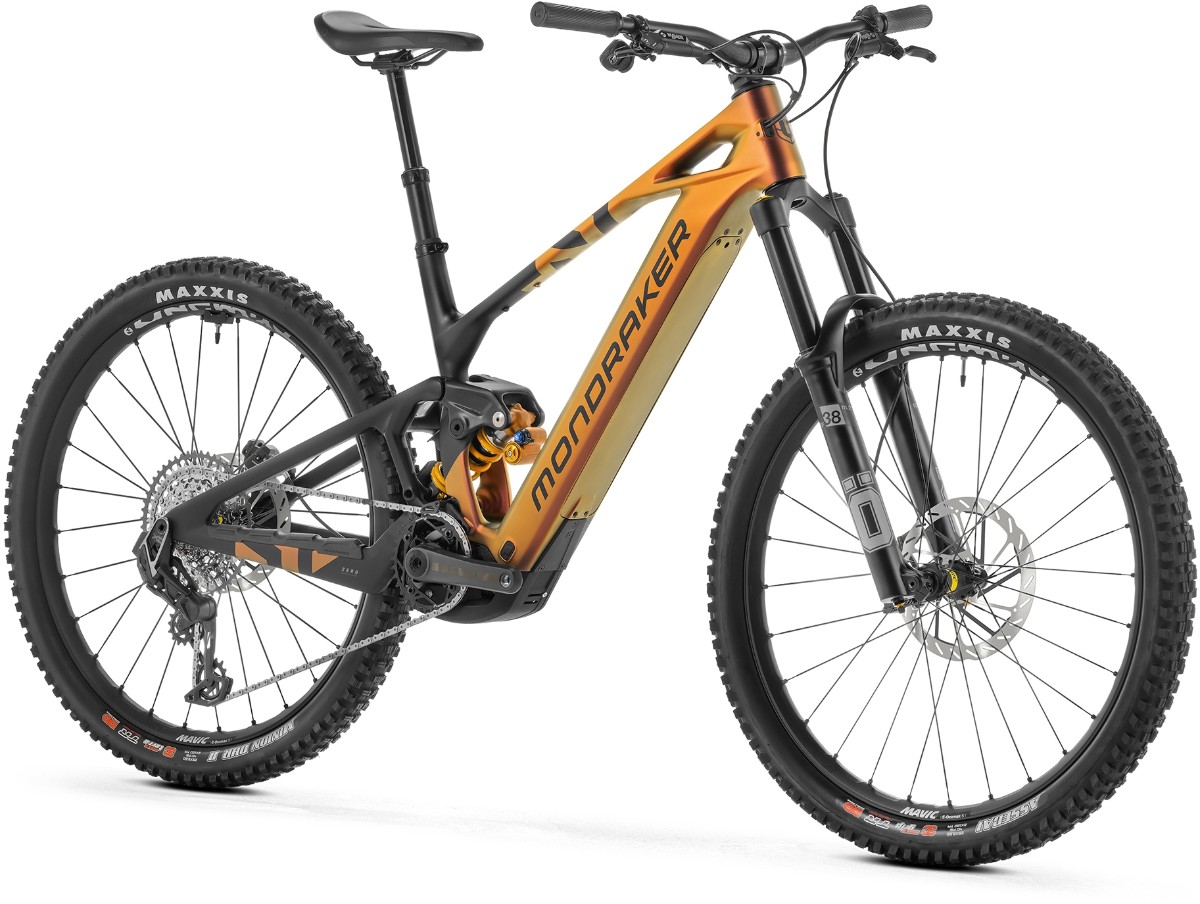

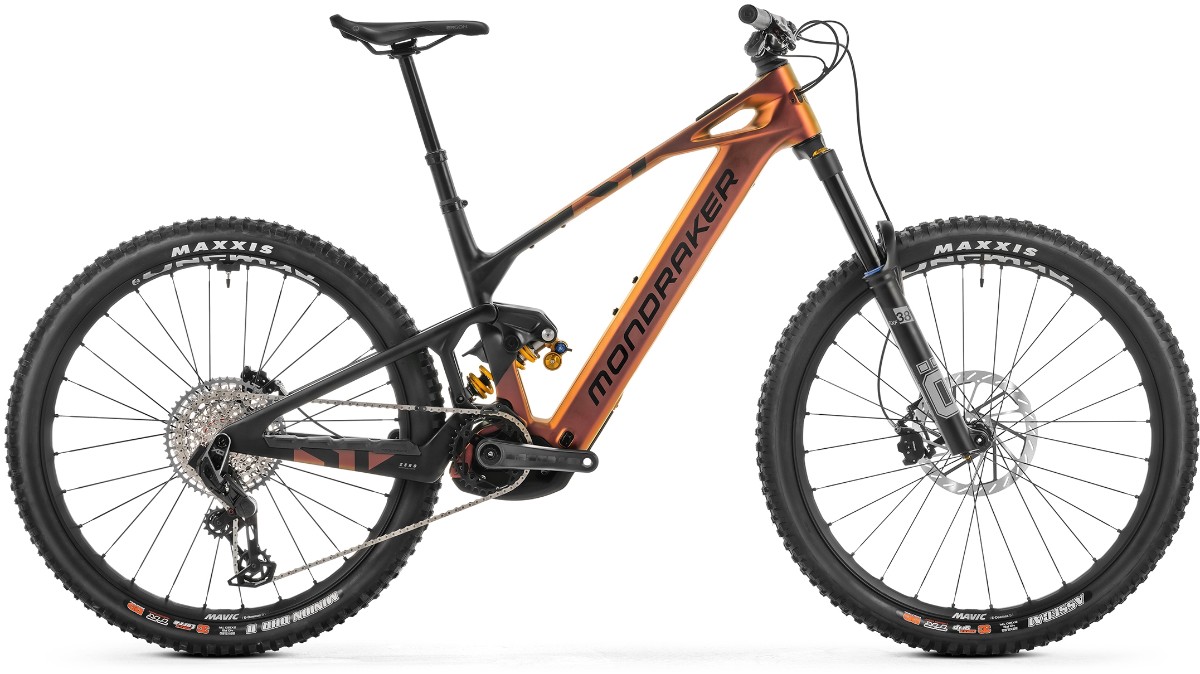

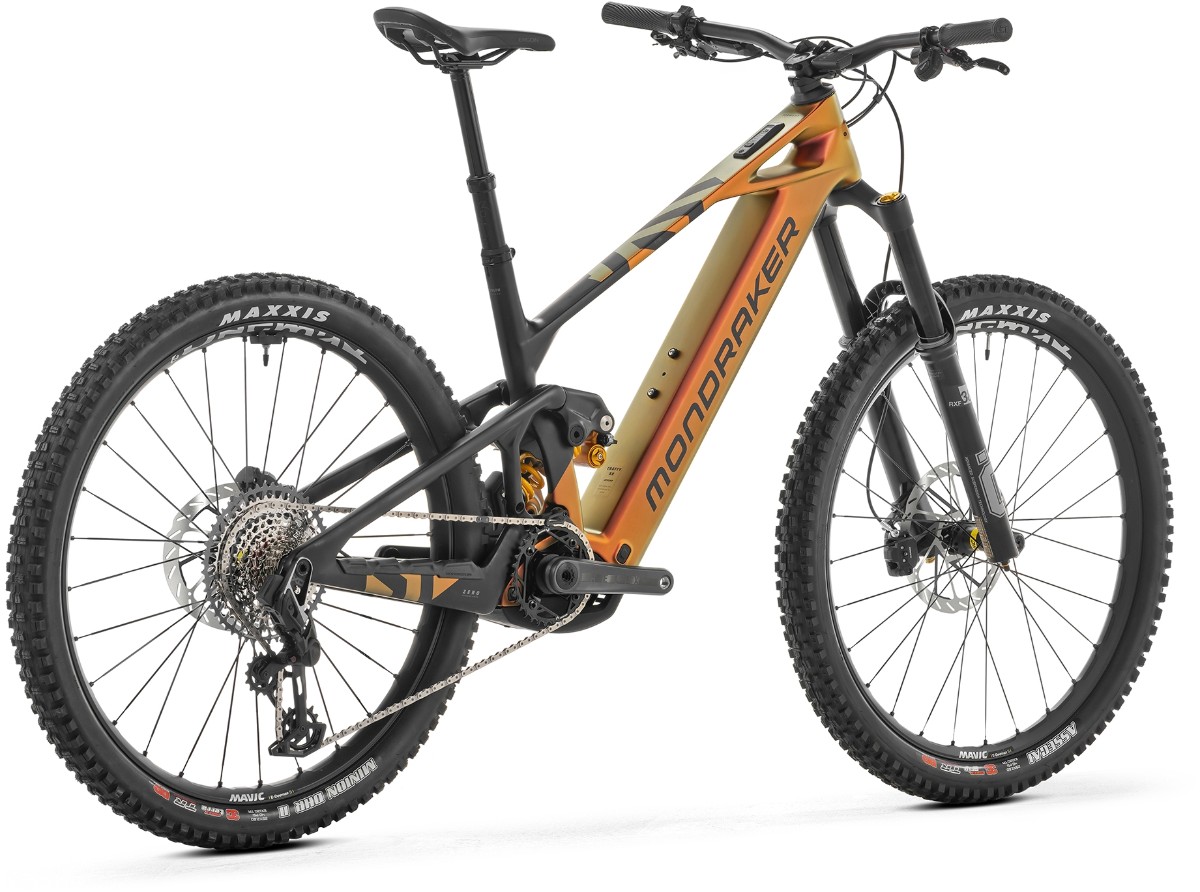

Introducing the next generation of Crafty Carbon. The latest iteration of the most successful e-Bike bar none. Totally redesigned with nothing left untouched, yet unmistakably a Crafty and still with all the character that’s defined the model since the day it was launched.
You can’t evolve without pushing the limits. No two ways about it. Adrenaline drives you to push your limits and evolution helps you overcome them. That’s why Mondraker designed the new Crafty Carbon. For more control than ever before. The flagship ebike, featuring the new Bosch CX motor and removable 600 and 800Wh batteries.The XR models have always stood out when you start pushing the limits. The Crafty Carbon XR is no exception and comes fitted with an Öhlins 170mm fork, an Öhlins coil rear shock, a full carbon fibre frame, SRAM’s X0 EAGLE AXS drivetrain and hugely powerful Maven Silver brakes. Fitted with Bosch’s 600Wh internal removable battery, the optional Powermore 250Wh can be added (if desired) to increase range.
Crafty Carbon counts on an all-new carbon fibre frame manufactured from Stealth Air Carbon. There are 5 builds available in 5 different sizes with two different chainstay lengths depending on size. The R and RR builds are built on a carbon fibre frame with an aluminium rear triangle. The other 3 builds, the RR S, XR and RR SL are carbon fibre throughout.
The design lines create an imposing silhouette, thanks in part to the incorporation of Bosch’s new removable batteries. The unmistakable Mondraker aesthetic, with characteristic angular, flat structures expressed through our distinctive design language sets the Crafty Carbon apart as it has done since the day of its inception.
The evolution of the kinematics of the Updated Zero Suspension System coupled with the gains made by Bosch’s new CX motor with its natural feel, lack of noise and reduced friction above 25km/h mean that the performance of the new Crafty Carbon has been taken to a whole different level. Crafty Carbon range, designed to evolve, is here in its most advanced level of evolution to date.
A significant update to the new Crafty Carbon range, is the addition of the highly anticipated, totally revamped 2025 Bosch Performance CX. The market leader among full power motors, the CX has been an intrinsic part of every Crafty Carbon since its launch in 2020. Bosch’s new motor incorporates an updated design architecture with two mounting points instead of three, a 100g reduction in weight and a reduction in its overall size.
This updated Bosch CX has the same 85Nm of torque and 600W peak power as the previous model but offers far better power delivery and control. Motor noise is reduced while pedalling and coasting, and mechanical rattles when riding downhill have been eliminated altogether. The CX’s new software and electronics, together with the improved kinematics of the new Zero Suspension System, mean the Crafty Carbon offers improved performance in all conditions and on all terrain types. The new motor also boasts reduced drag when pedalling above 25km/h.
One additional function of the new motor is the ‘Hill Hold’ mode which, when activated by holding the minus button, keeps the bike from rolling backwards on slopes until you start pedalling. The same option also serves to stop the bike from rolling backwards while being pushed uphill.
Occasionally, without notice, manufacturers change product design and/or specifications.
