| Frame: | TFS III - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
| Fork: | SR Suntour NEX DS; Coil; 63mm travel; Max tyre size: 700x50C |
| Headset: | Merida M2345 |
| Stem: | Merida Comp TK; aluminium; 25.4mm diameter; 7 degree rise - Length - 100mm (all sizes) |
| Bars: | Merida CC; steel; 620mm wide; 30mm rise |
| Front Brake: | Shimano BR-M375 hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Rear Brake: | Shimano BR-M375 hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Brake Lever: | Shimano M375 |
| Front Mech: | Shimano FD-TY510-3 |
| Rear Mech: | Shimano RD-M310-7 |
| Shifters: | Shimano ST-EF500 |
| Speed: | 21 |
| Rims: | Merida CC; 17mm inner rim width; aluminium |
| Front Hub: | Shimano TX505; 100 x 9mm; 32 spoke; Centerlock |
| Rear Hub: | Shimano TY505-7; 135 x 9mm; 32 spoke; Centerlock |
| Spokes: | Steel UCP |
| Front Tyre: | Merida K1171; 700 x 40C; wire bead |
| Rear Tyre: | Merida K1171; 700 x 40C; wire bead |
| Seat Post: | Merida CC; 30.9mm diameter; 15 mm layback; Aluminium |
| Saddle: | Merida Cross Sport |
| Chainset: | Shimano TY301; 48-38-28 tooth chainset; Aluminium; Crank length - 170mm (XXS/SM), 175mm (ML and up) |
| Bottom Bracket: | Shimano BB-UN101 73-123 |
| Chain: | Sunrace CNM84 |
| Cassette: | Shimano CS-HG200-7; 12-32 teeth; 7 speed |
| Pedals: | VP VPE-891 |
What are the delivery costs?
We offer Free UK Mainland Delivery on all orders over £20. Products shipped to outlying UK regions are excluded from free shipping.
Standard delivery is normally 2 - 5 working days.
Please view our delivery page for full information on UK and international delivery costs.

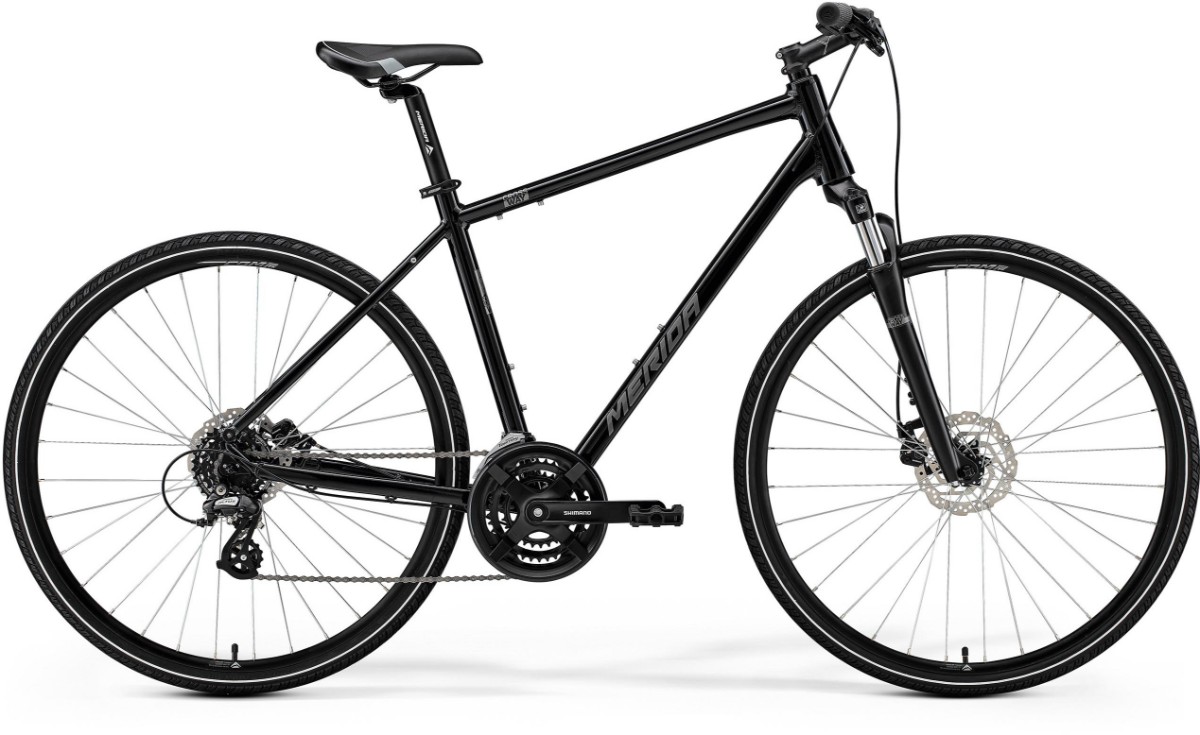

A perennial best seller, versatile hybrid with 21 gears, suspension fork and mechanical disc brakes. Shimano BB, chainset and hubs for greater longevity.
The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting.
All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height.
For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
Occasionally, without notice, manufacturers change product design and/or specifications.
