| Frame: | Adventure, 6061 alloy |
| Fork: | RockShox Rudy, 40mm travel |
| Headset: | FSA Orbit No.42, Integrated, 1-1/8" - 1.5" |
| Stem: | Alloy, 70mm(S,M), 80mm(L) -7degree rise |
| Front Brake: | SRAM DB-S300-A1, 160mm Disc Rotor |
| Rear Brake: | SRAM DB-S300-A1, 160mm Disc Rotor |

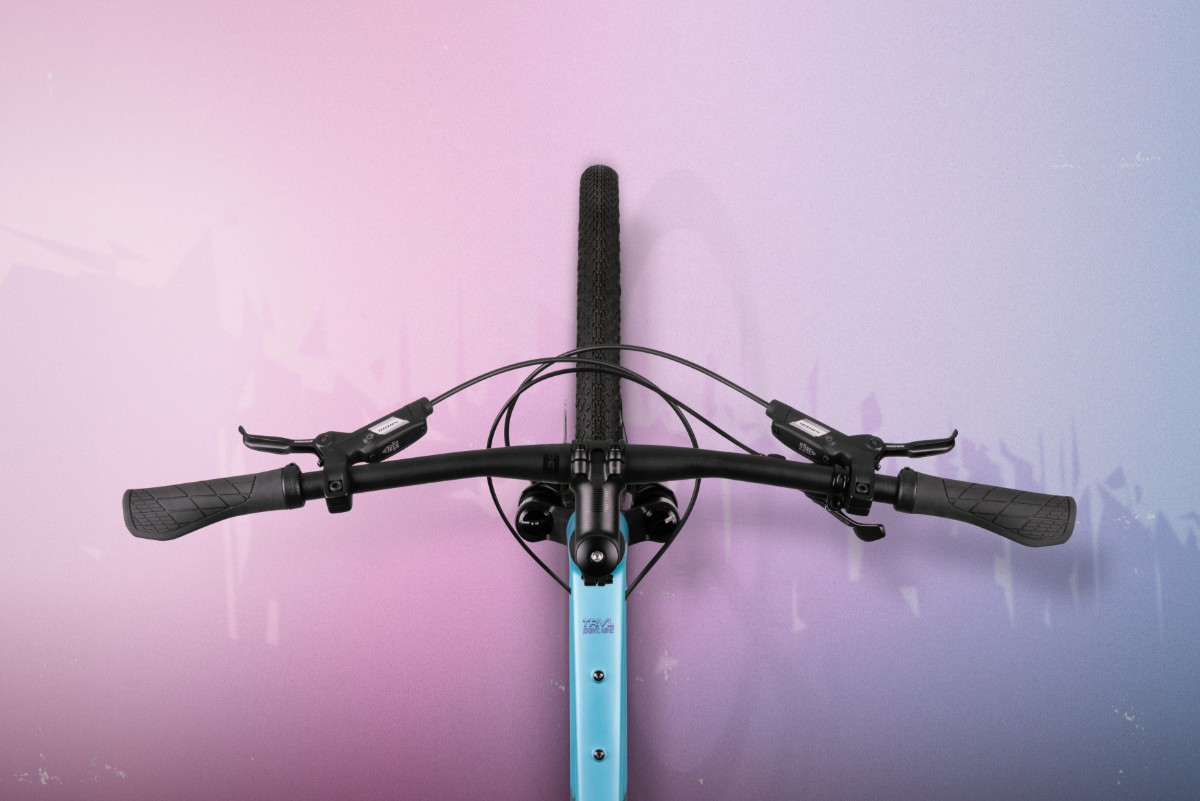

| Brake Lever: | SRAM DB-S300 |
| Rear Mech: | SRAM Eagle RD-GX-1, 12 Speed |
| Shifters: | SRAM Eagle SL-GX-1, 1x12 Speed |
| Speed: | 12 |
| Rims: | Alloy, Double Wall, 12mm Thru-Axle, Tubeless Ready (Tubeless Rim Tape Installed) |
| Front Tyre: | Goodyear Connector, Tubeless Ready, 700x45mm |
| Rear Tyre: | Goodyear Connector, Tubeless Ready, 700x45mm |
| Seat Post: | Alloy, 31.6mm x 350mm(S) 400mm(M,L) |
| Saddle: | Fizik Terra Argo |

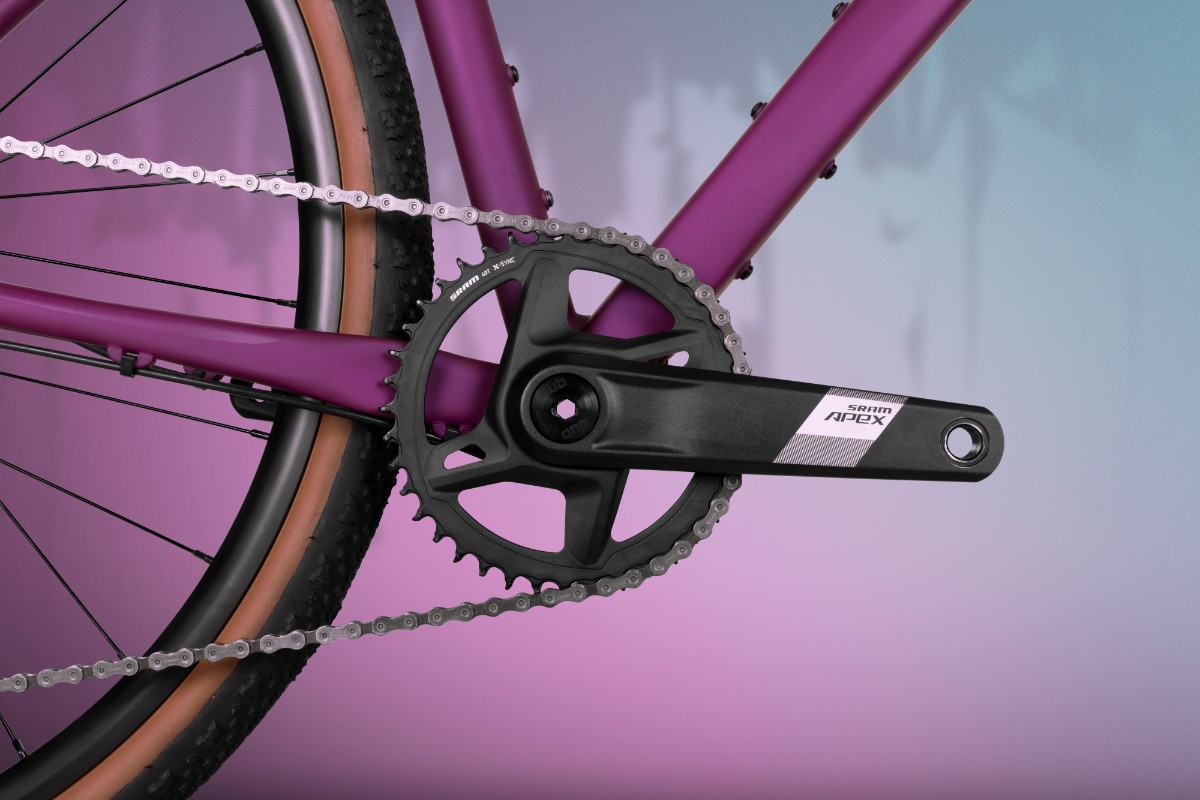

| Chainset: | SRAM FC-Apex-D1, 42T, 165mm(S) 170mm(M) 172.5(L) |
| Bottom Bracket: | SRAM DUB T47 |
| Chain: | SRAM SX Eagle, 12 Speed |
| Cassette: | SRAM PG1230 Eagle, 11-50T, 12 Speed |
| Pedals: | Alloy, Cage |
| Weight: | 11.5kg |
What are the delivery costs?
We offer Free UK Mainland Delivery on all orders over £20. Products shipped to outlying UK regions are excluded from free shipping.
Standard delivery is normally 2 - 5 working days.
Please view our delivery page for full information on UK and international delivery costs.
The Boardman TRVL range is designed for expeditions that demand more than everyday adventures. Tested on some of the UK's most punishing gravel tracks and trails, the TRVL range features 40mm of front suspension, generous tyre clearance, rack, mudguard, and bag mounts.
Go further, tackle more, and explore routes less travelled.Frame & Fork

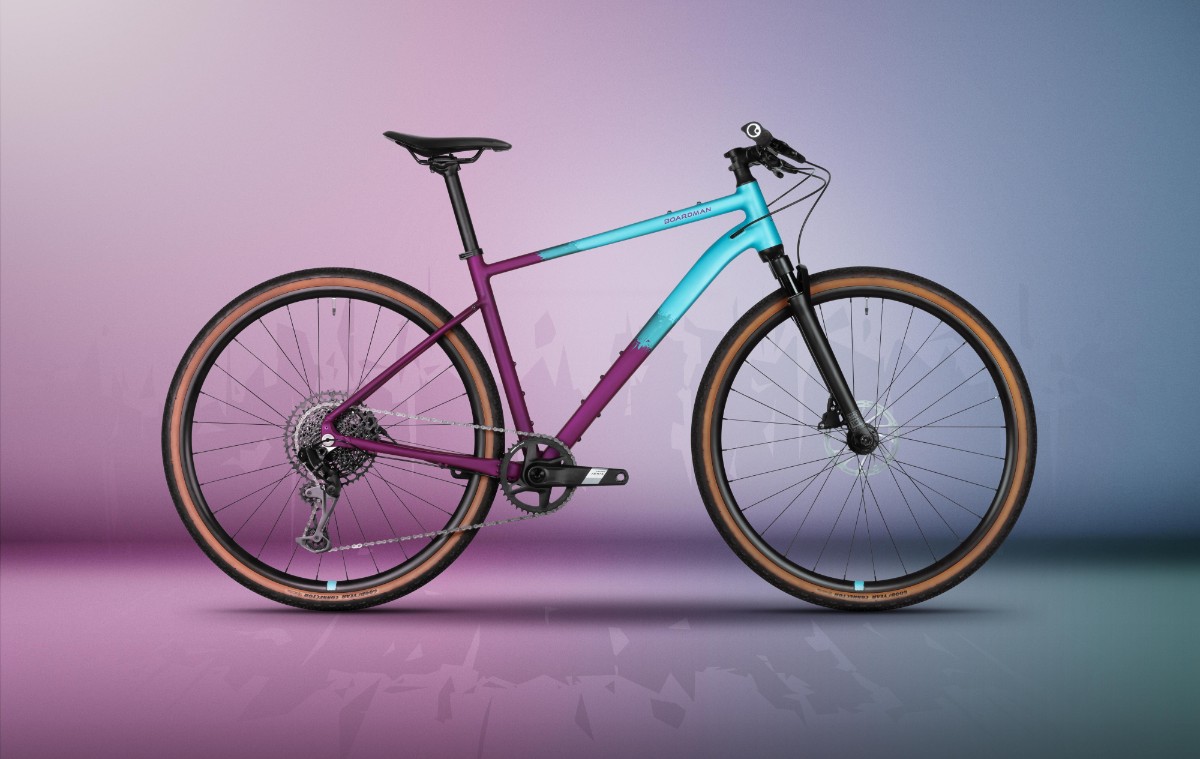

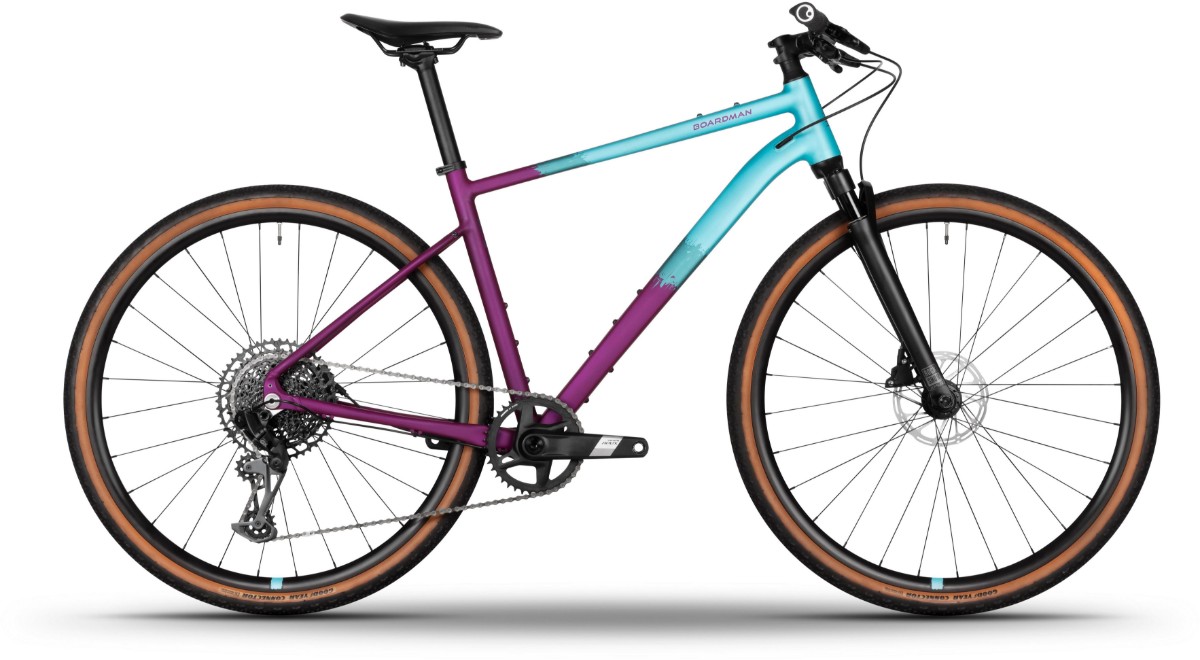

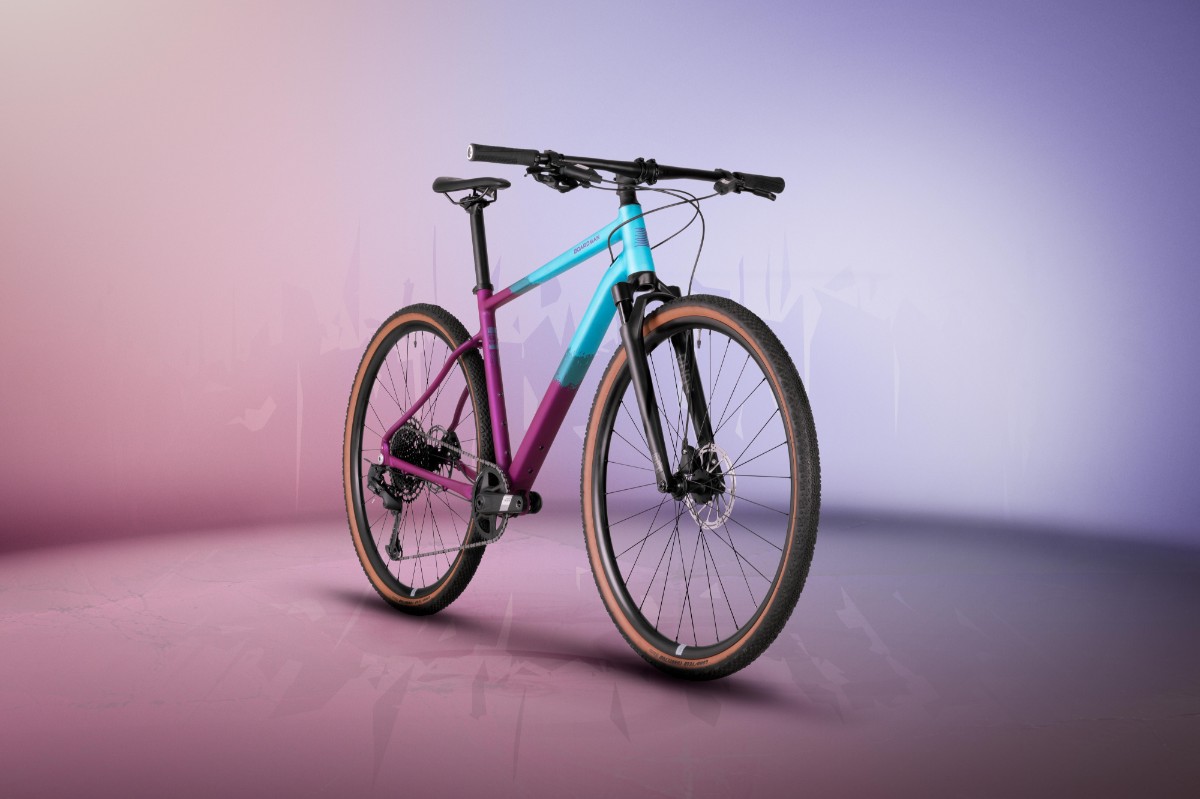

This bike's design draws inspiration from classic hardtail mountain bikes, exuding a sense of nostalgia but with modern performance advantages. The TRVL 8.9 features short travel forks and tyre widths reminiscent of a golden era of mountain biking.
Boasting a 70-degree head angle and a RockShox Judy fork with 40mm of travel, its capable handling and cushioning make that long gravel sportive or multi-day adventure easier on your back and hands. Ride with confidence down loose fire roads knowing your front tyre will track and grip the ground.
Groupset
No triple chainrings or 6-speed screw on freewheels here! A SRAM 1x12 Eagle GX/SX mix groupset with an 11-50 tooth cassette is engineered for smoother, more precise shifting. The wide range cassette allows you to tackle steeper trails with enough left in the tank to handle whatever challenges you find when you get to the top.
Something else not brought back from the 90's, are the brakes. Not a V-brake or canti in sight. Just some up-to-date hydraulic disc brakes running on 160mm rotors, so you can stop swiftly, whatever the surface or weather.
Wheels & Tyres
The Boardman TRVL 8.9 alloy wheelset is tubeless ready. To experience the added grip, comfort, and versatility of a tubeless set-up, you only need to add sealant and valves!

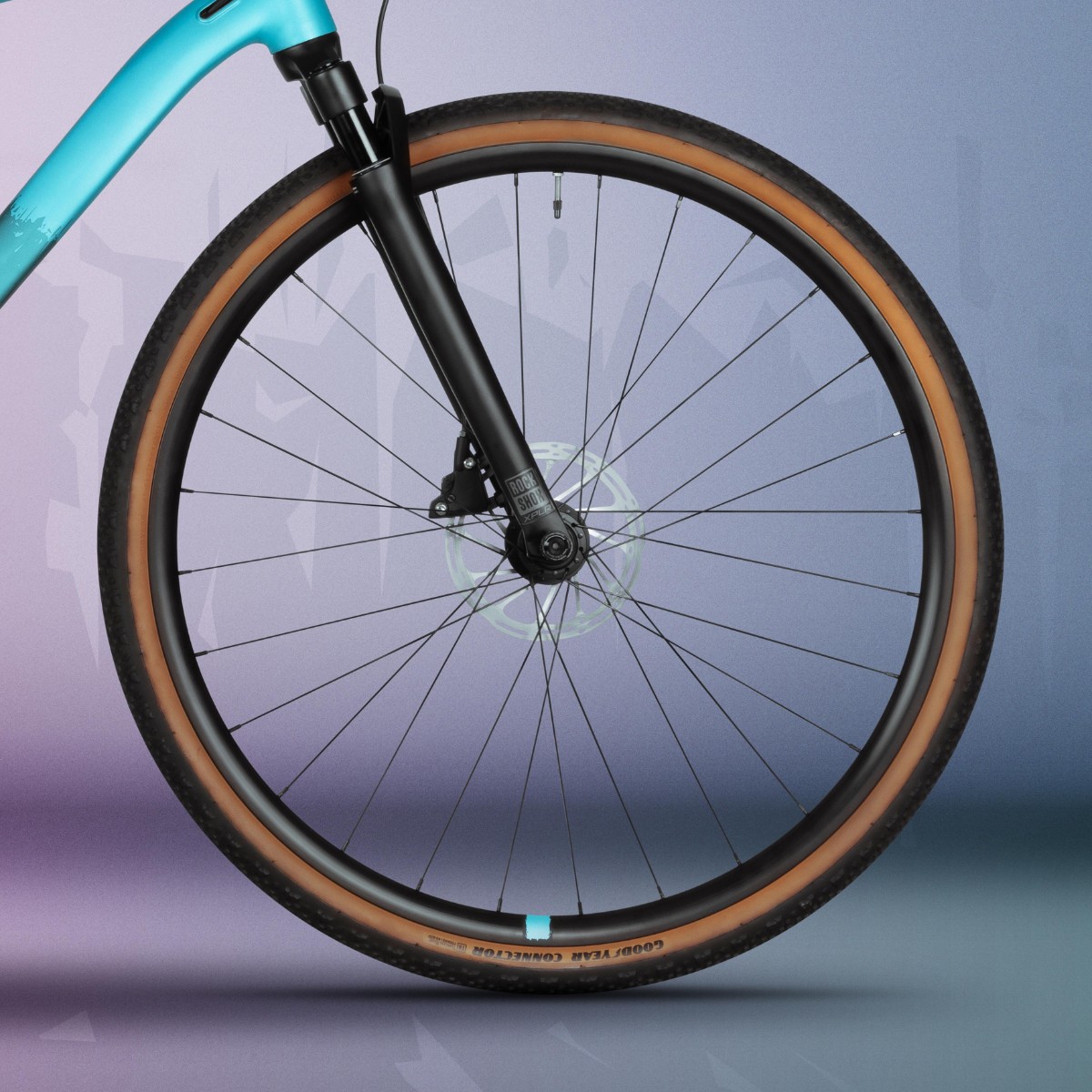

Goodyear's 45mm gravel-specific Connector is the TRVL 8.9's tyre of choice. Designed as a fast-rolling all-terrain tyre, its versatile tread pattern with tightly-spaced centre knobs and aggressive side knobs delivers straight-line momentum whilst retaining grip demands when the direction changes or the route gets technical. They also have tan walls for a 90's vibe!
Finishing Kit
The Fizik Terra Argo saddle is designed, from its rails up, as a dedicated gravel saddle. A stiff rail system supports a compliant shell designed to facilitate a degree of flex, reducing vibration and improving comfort. Fizik has opted for a slightly softer, more progressive foam than that used on their racing saddles, and when combined with the Argo's shortened nose, waved profile, and ergonomic channel, helps riders hold their position for longer in more comfort and pedal more effectively over changing terrains.
Occasionally, without notice, manufacturers change product design and/or specifications.
