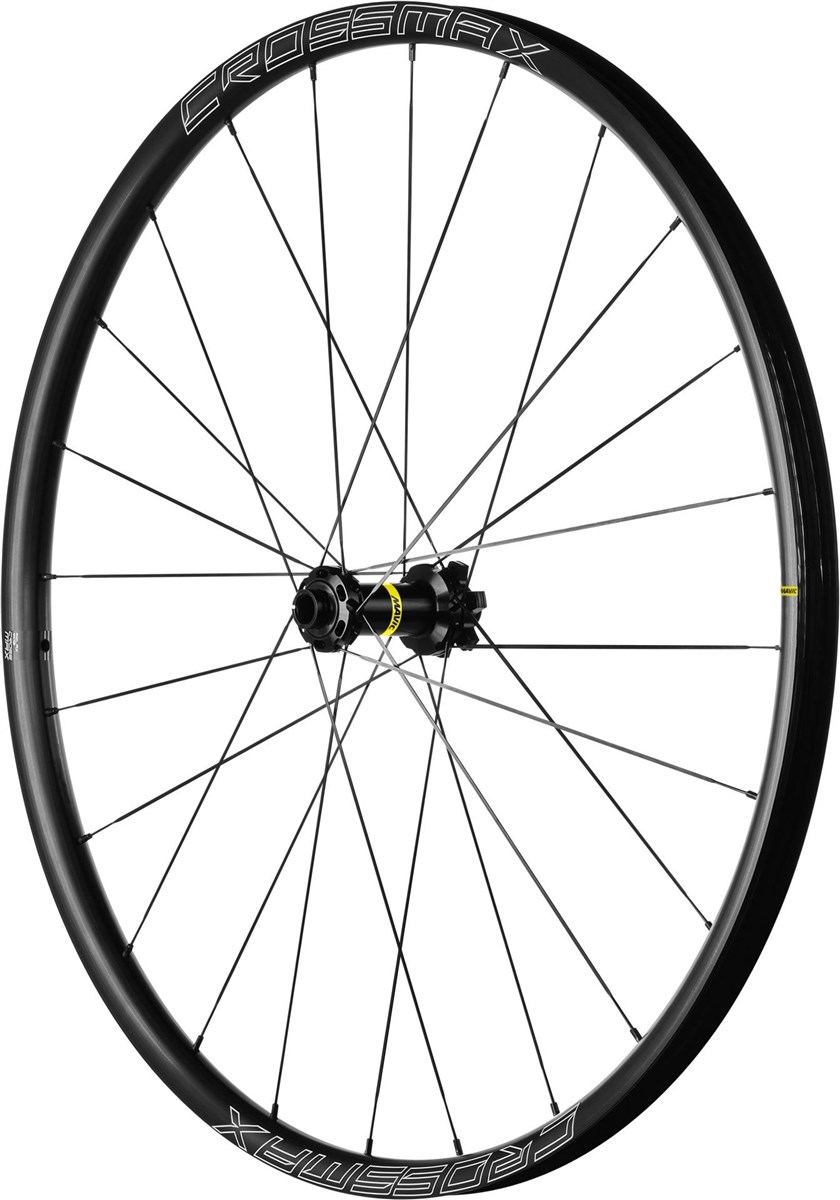

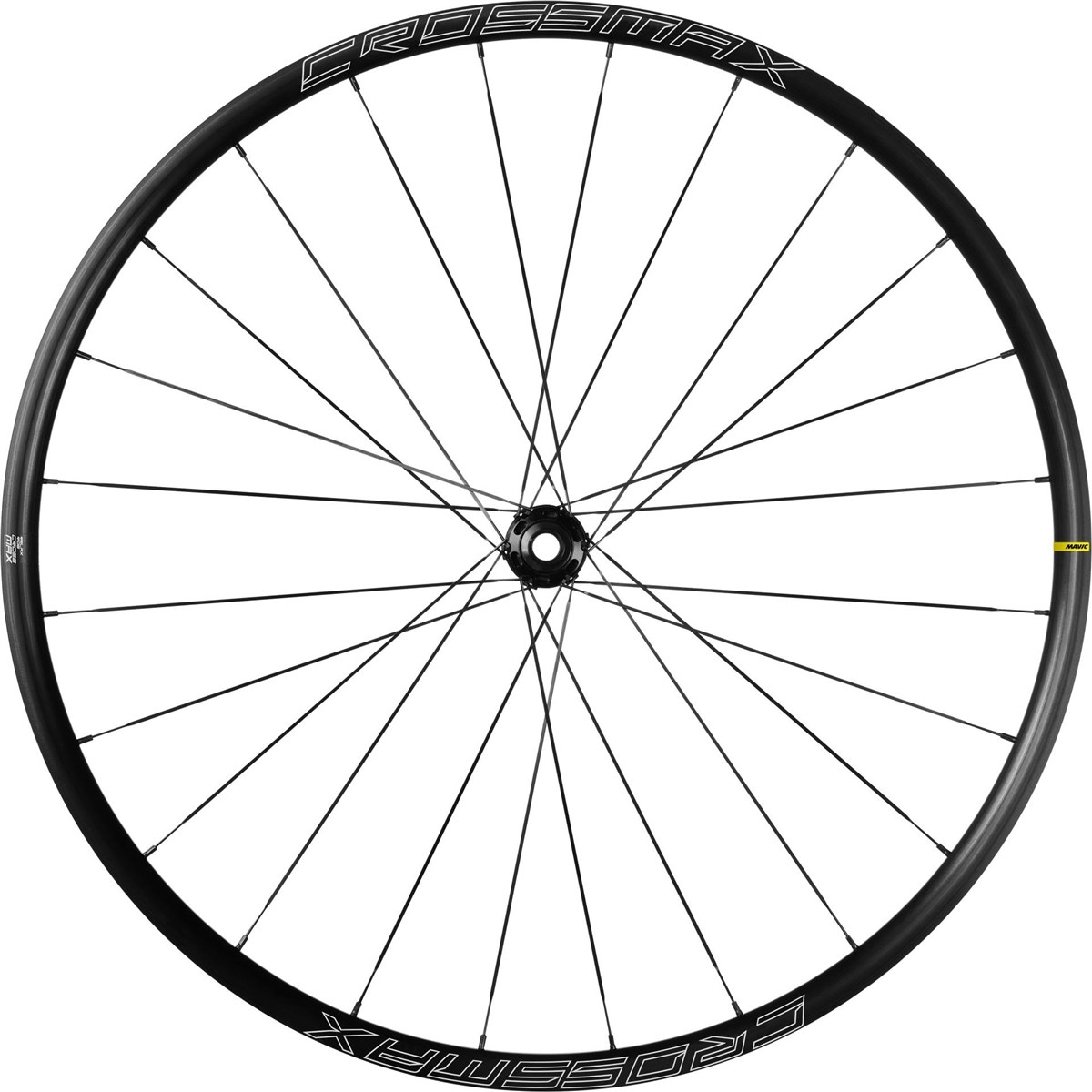

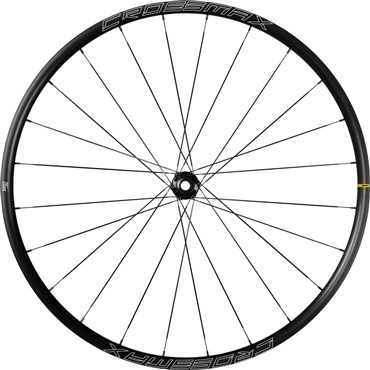

Featuring Infinity hubs, ID360 freewheel and Maxtal welded rims, this modern XC wheel lives up to the legendary Crossmax name: strong, reliable, and tubeless ready.
Occasionally, without notice, manufacturers change product design and/or specifications.
15x110 | Boost | Centre Lock
Specifications:
Delivered With:
- UST valve and accessories
- Pre-installed tubeless rim tape
- 2 replacement spokes with each wheel

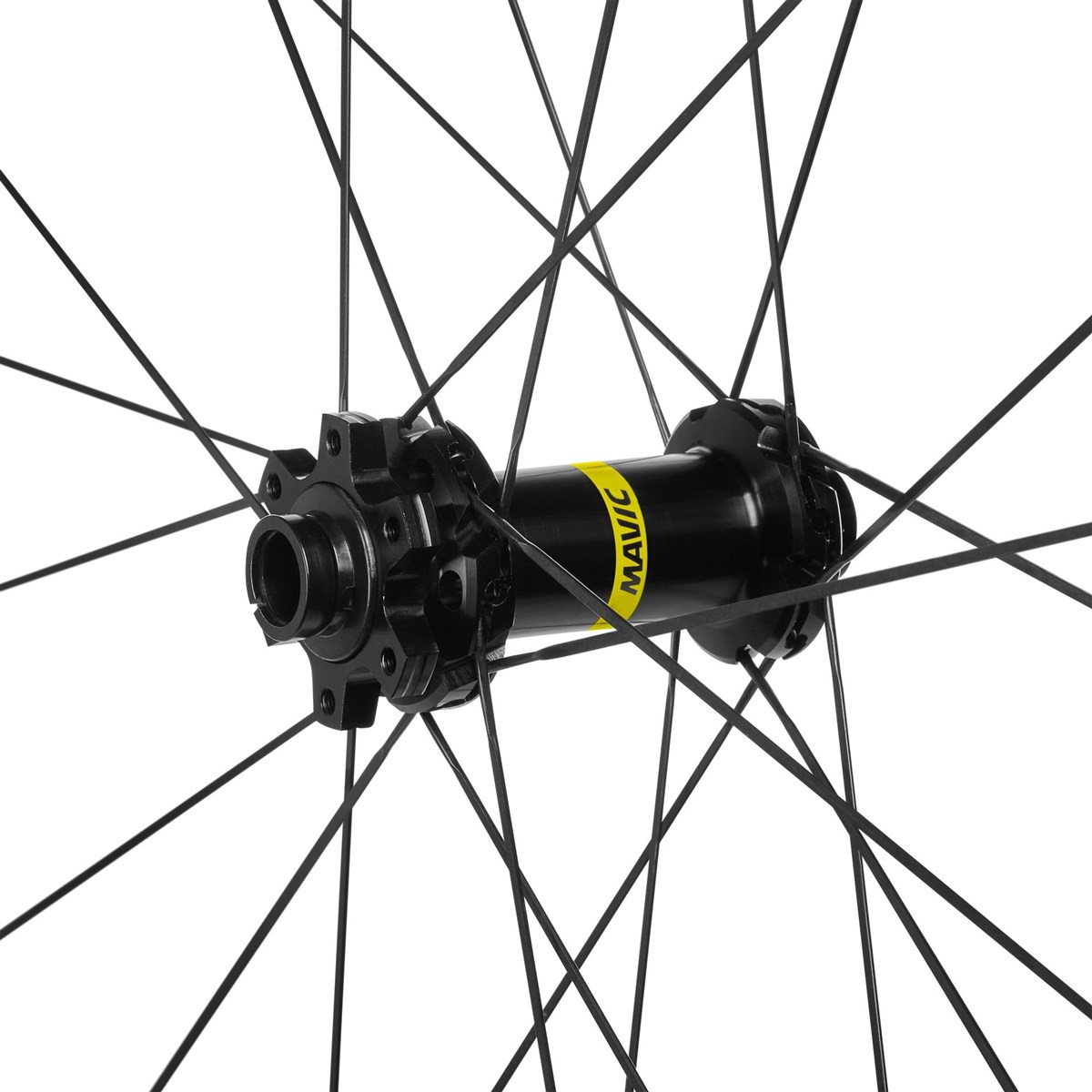

Hubs:
- Axles: Front 15X110 (Boost) or 15x100 ; Rear 12X148 (Boost) or 12x142
- Instant Drive 360
- QRM Auto
- Hub available with 6-bolt or center lock (R) brake rotors
- Infinity Hub
Rims:
- Material: Maxtal
- Valve hole diameter: 6.5 mm
- SUP
- Drilling: traditional
- UST Tubeless Ready
- ETRTO size 27.5": 584x25TSS
- Internal width: 25 mm
- Use with Mavic Tubeless Tape
- Asymmetrical rim design
Spokes:
- Count: 24 front and rear
- Lacing: front and rear crossed 2
- Material: steel
- Shape: straight pull, flat, double butted
- Nipples: steel, ABS
Intended Use:
- Recommended tyre sizes: 50mm to 76mm (2.0" to 3.0")
- ASTM CATEGORY 3 : CROSS COUNTRY
- For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, bike included
Versions:
- Disc standard : 6 Bolts or Center Lock (R)
- Hub width : Boost (front 110, rear 148) or Non-Boost (front 100, rear 135/142)
- Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline
Compatibility:
- Rear axle: 12mm thru axle, convertible to Quick Release with adapters (delivered with non-boost wheel)
- Front axle: convertible from 15mm thru axle to Quick Release with adapters (delivered with non-boost wheel)
- Compatible Adapters and freewheel bodies
- 12x142 rear axle adapters ([LV2510700]l)
- Boost : Torque Caps ([LV2374400])
- Non-Boost : 15 to 9mm front adapter for quick release ([L99694100])
- Non-Boost : 12 to 9mm rear adapter for quick release ([LV2510801])
- Non-Boost : 12x135 rear axle adapters ([LV2510900])
Key Technologies:
- Infinity Hubs
- SUP welding technology
- QRM Auto bearing preload technology
- Instant Drive 360 freewheel technology
- UST tubeless technology
Key Benefits:
Light and durable
Welded rim construction for: a light and strong rim profile and a a perfectly sealed rim
Dynamic and agile
24 double butted spokes Infinity hub platform ID360 double ratchet freewheel system
Tubeless ready technology
A tubeless rim profile and tubeless tape make it easy to ride tubeless tires for more comfort and control
The name Crossmax has a long history in the world of XC riding and racing and this new wheelset lives up to its name with many of the same features and technologies as pro-level XC race wheels, but at a far more attainable price. One of the key factors is our UST technology, which allows for easy setup of tubeless ready tires and gives you all the associated benefits including better traction and control, a smoother ride quality and a reduced risk of punctures. The rim is welded for added reliability and features a 25mm internal width with a hookless profile.
The Infinity lighter hub design optimizes lateral stiffness and spokes tension. Our Instant Drive 360 freewheel with a double ratchet system provides fast engagement and top-level reliability. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The Crossmax is available with 6-bolt or center lock brake rotors in 29” and 27" and is compatible with a 15x110 front axle and 12x148 rear.
The wheel is delivered with valves, replacement spokes and accessories.
